FLAP HINGES

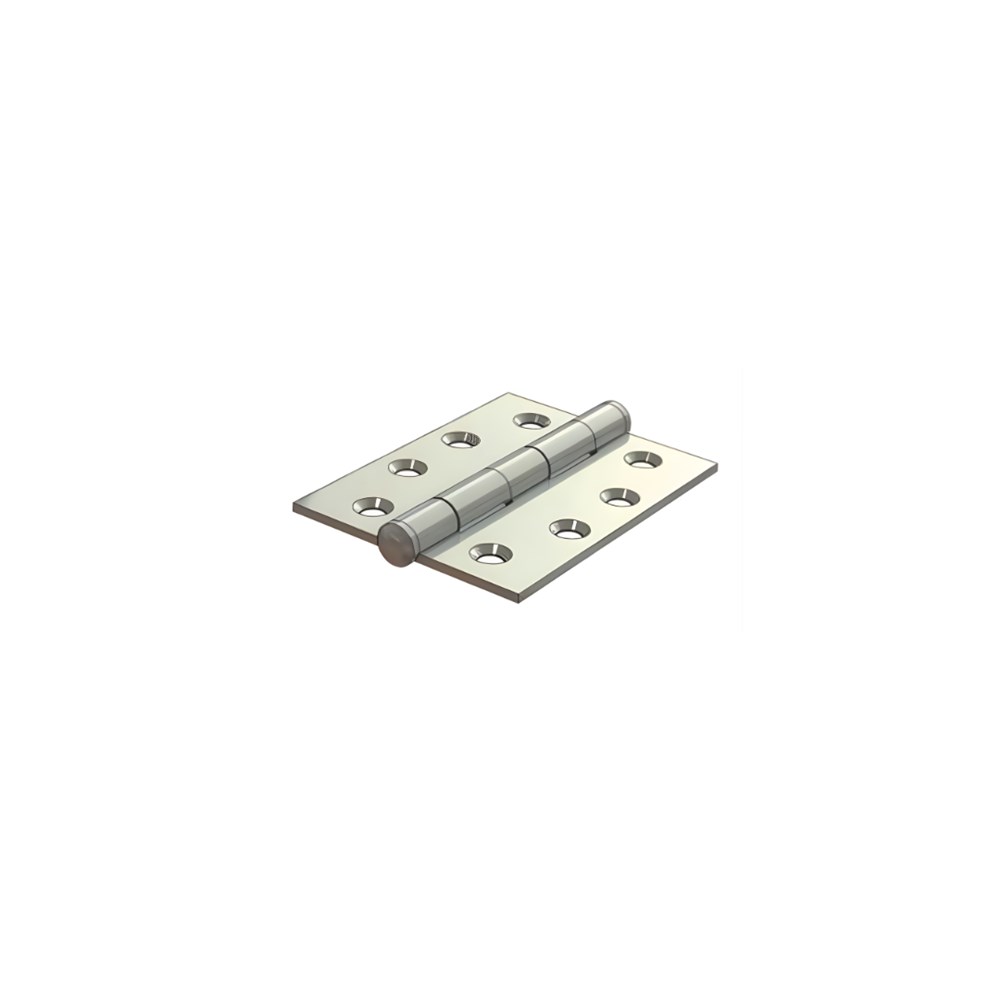

Butt Hinge 100mm x 100mm x 2.5mm Zinc Plated

Code:
BH100100X2-5ZP
In Stock Low Stock Out Of Stock Please See Attributes 2
$7.13 inc GST
Increase value Decrease value


Weight (kg)
0.13
Qty Each (inc GST) Each
  • Specifications
  • Material and Finish
  • Features
  • CAD File
  • Contact Us

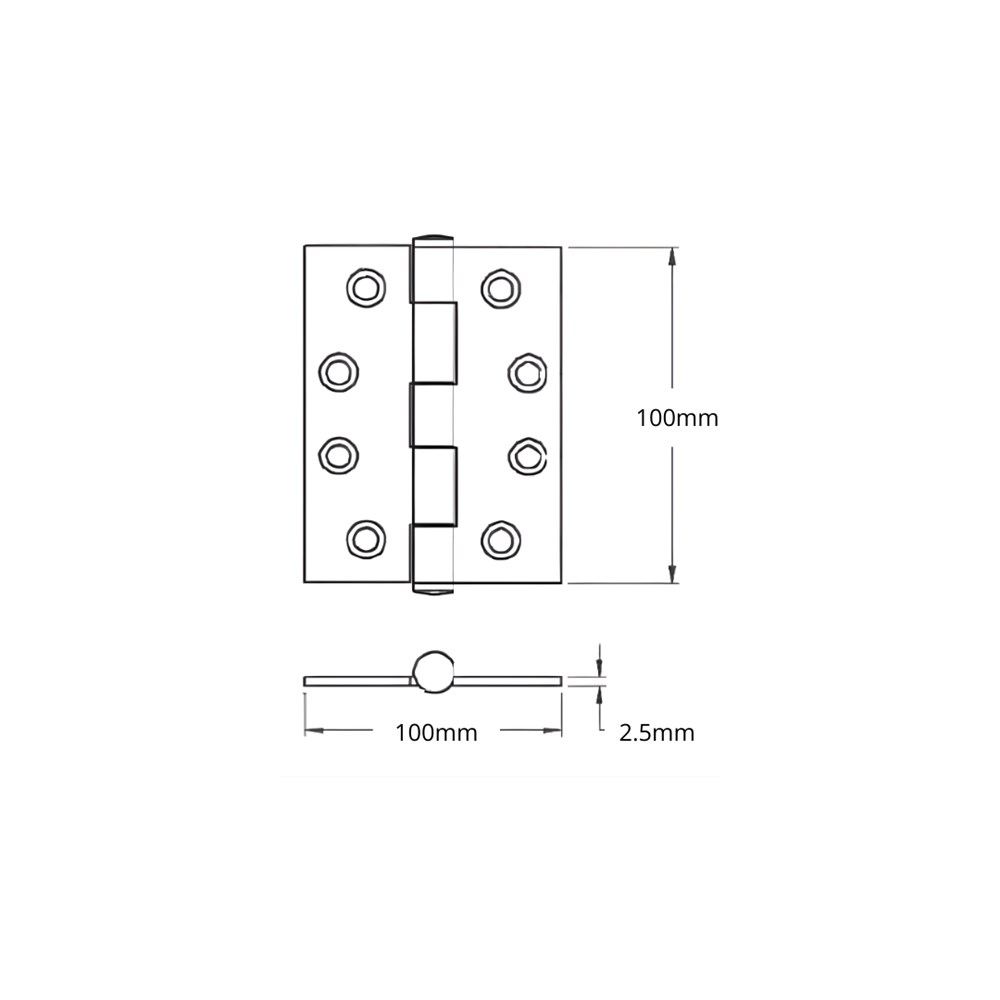

  • Dimensions: 100mm (H) x 100mm (W)
  • Leaf Thickness: 2.5mm
  • Pin Type: Fixed pin
  • Mounting Holes: 8 countersunk holes (
  • Knuckle Design: Three-knuckle configuration for smooth pivot action
  • Application: Suitable for doors, cabinets, panels, toolboxes, and access hatches in transport, industrial, and commercial environments

  • Steel with Zinc Plating

  • Zinc-plated steel construction: Provides excellent durability and corrosion resistance in transport, industrial, and outdoor environments.
  • Large 100mm x 100mm profile: Ideal for heavier doors, hatches, and access panels where strength and stability are critical.
  • 2.5mm thick hinge leaf: Offers robust support and resistance to flexing under load.
  • Fixed pin design: Enhances security by preventing accidental hinge disassembly in high-vibration or mobile applications.
  • Three-knuckle design: Ensures smooth, consistent pivot action and even load distribution.
  • Eight pre-drilled countersunk holes: Enables fast, flush mounting with even clamping force across both leaves.
  • Versatile usage: Commonly used on toolboxes, trailer doors, service panels, cabinets, and commercial vehicle fit-outs.
  • Surface-mount installation: Quick and straightforward to fit using standard hardware.

Access to CAD files is exclusive to registered users; please log in or create an account to download.
