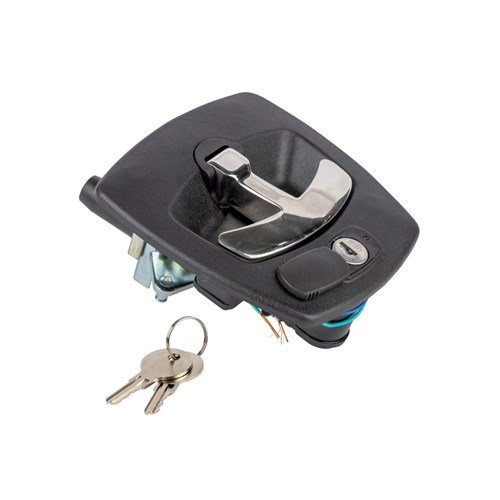

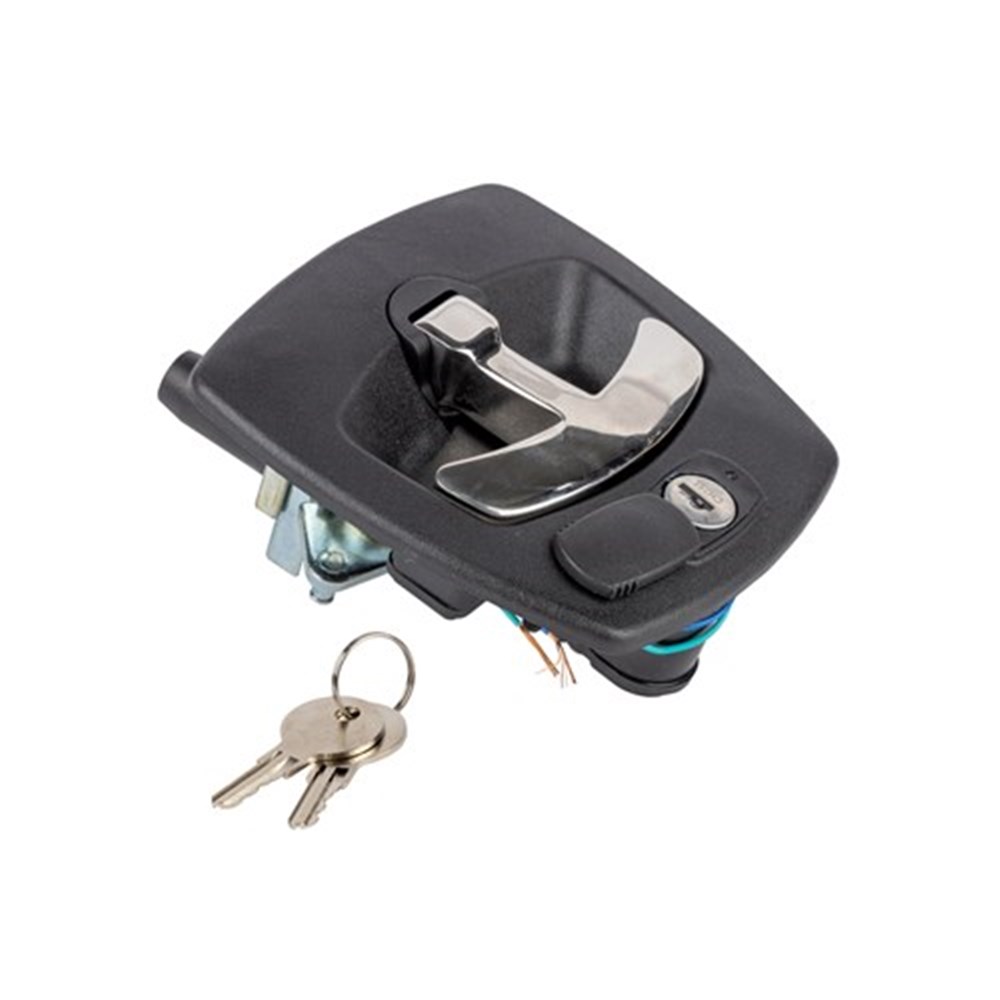

Name: Vector T3 Manual Chrome Handle -3 Way Keyed Ch751
Price: 59 NZD

Qty	Each (inc GST)	Each

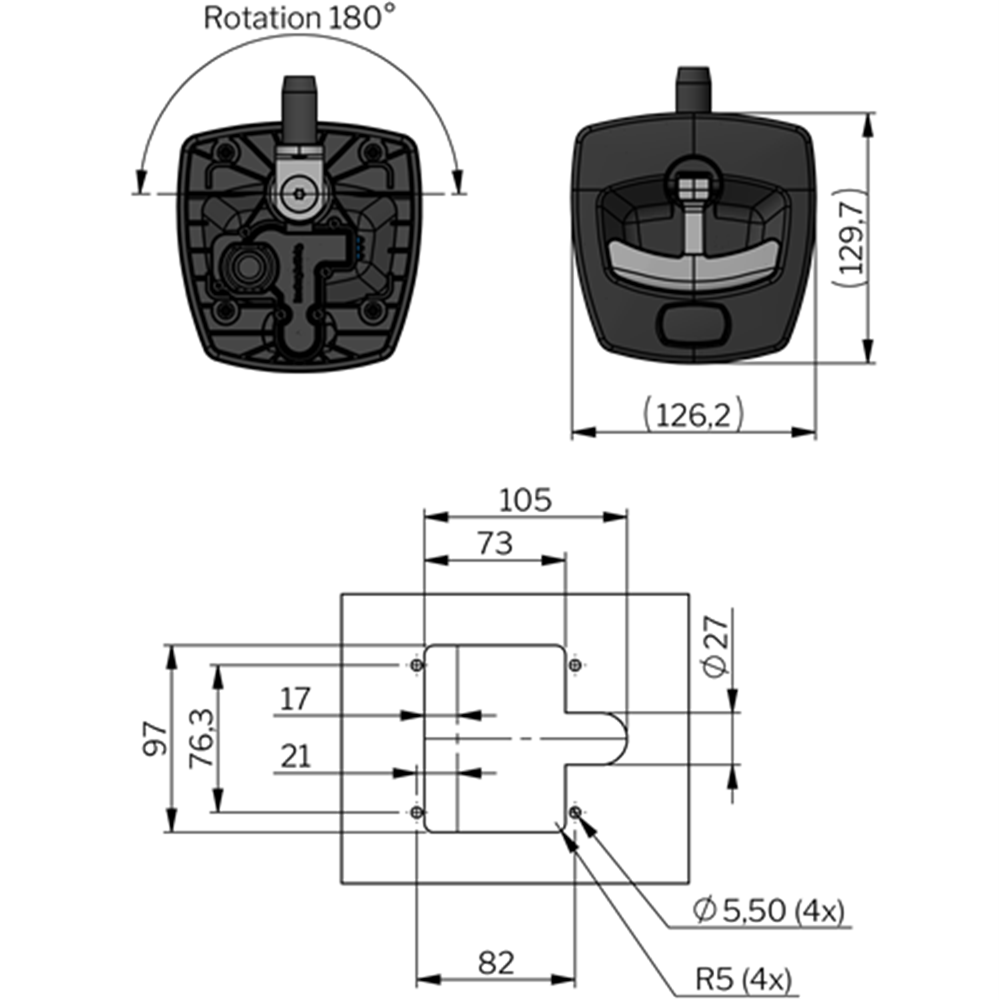

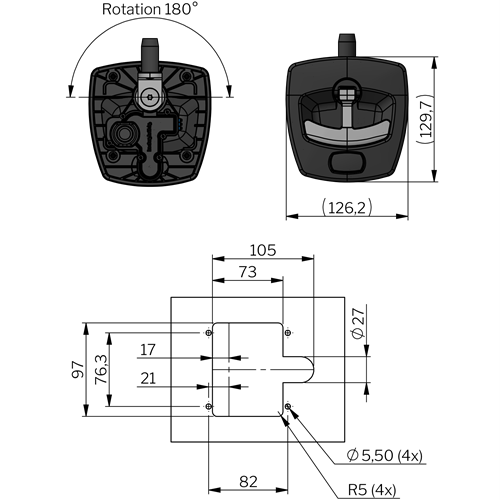

Dimensions: 126.2W x 129.7mm L
Weight: 680g
Colour: Black powder coat
Handle: Chrome plated finish
Handle Rotation: 180°
Cam: Adjustable 3 point roller cam
Keyed: CH751
Certifications: IP65, DIN EN 61373
Opening rotation
- Two- and three-point cams combined with adapter cannot be used with handles with clockwise or 180º rotation.
- Using two- and three-point cams without adapter works with all opening rotations.
Maximum tightening torque: 2,2 Nm

Adjustable cam: Zinc die cast, passivated
Body: Glass fibre reinforced polyamide (PA6GF30)
Cast-in bolts: Steel, black passivated
Cylinder: Zinc die cast, stainless steel 304 cap and dust shutter
Dust cover, black: Glass fibre reinforced polyamide (PA6GF30)
Handle: Stainless steel 304, polished or zinc die cast, black texture powder coated
Roller: Glass fibre reinforced polyamide (PA6GF30)
Rotating locking device: Stainless steel 303
Shaft: Stainless steel 303

125kg load capacity: Ideal for lightweight storage solutions.
Full extension: Provides easy access to the entire drawer.
Smooth ball bearing mechanism: Ensures quiet and effortless operation.
Easy installation: Suitable for DIY and professional fitting.
Side mount design: Compatible with standard drawer configurations.
Versatile applications: Ideal for tool storage, workshop cabinets, vehicle fit-outs, industrial workstations, and heavy-duty retail displays.
