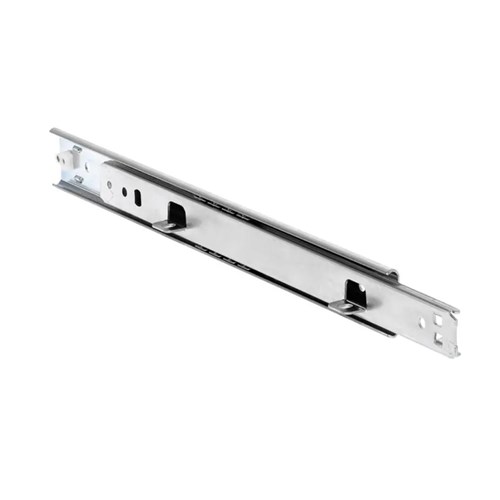

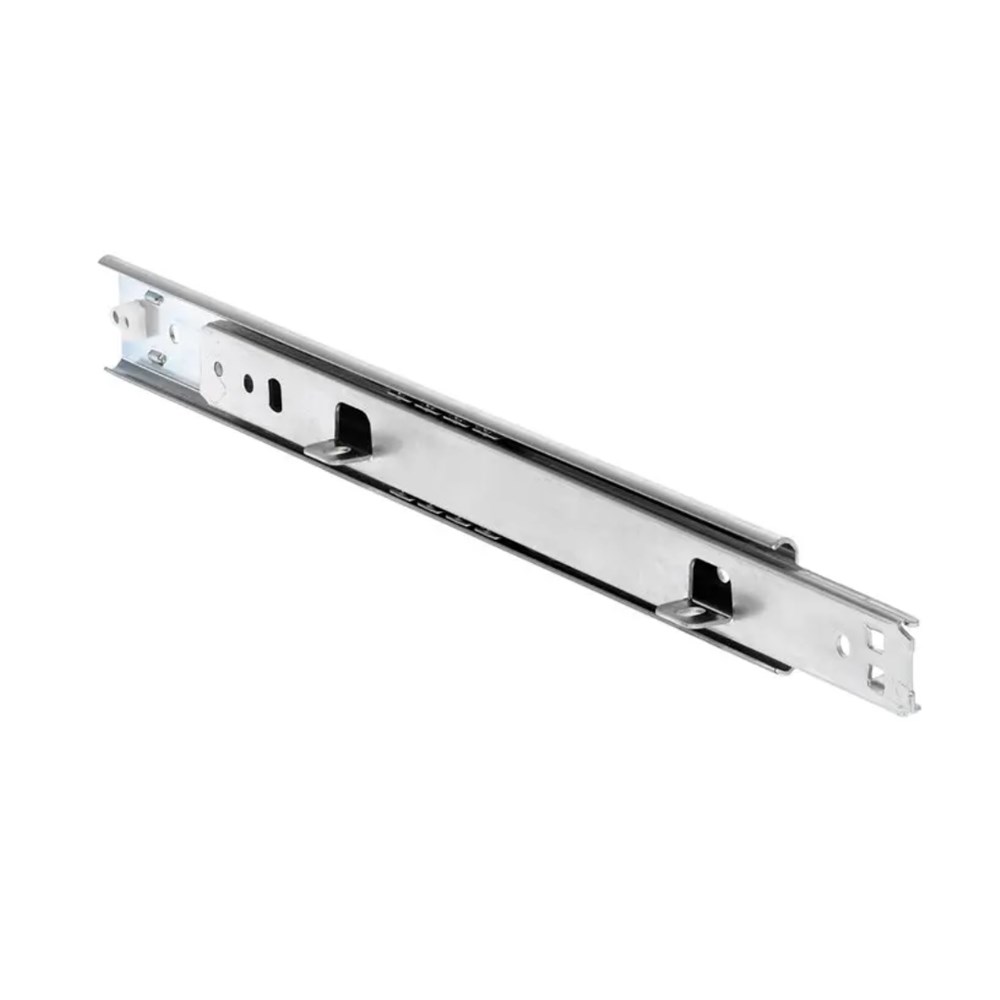

Name: Accuride 75% Extension 2 way with tabs 20cm PR ZP 35kg Load
Price: 127.86 NZD

Qty	Each (inc GST)	Each

Load rating: up to 65 kg per pair
75 % extension
Slide height: 35.3 mm
Slide thickness: 9.5 mm
Side space for installation between the cabinet and the drawer: rail thickness 9.5 mm +0.2 mm to +0.5 mm
Maximum slide length: 711 mm
Temperature -20 °C to 70 °C
Permitted mounting orientations: vertical mount, flat mount
Flat mounting reduces load rating by 75 %

Two-way travel (double extension): Enables access from both sides, ideal for central compartments or pass-through drawers.
Built-in mounting tabs: Simplifies installation and alignment, saving time in production and assembly.
Load rating up to 35kg: Supports light-duty storage needs in compact drawers, kiosks, or equipment housings.
75% extension: Allows controlled access while maintaining stability - suitable for shallow-depth drawer systems.
Slim 9.5mm slide thickness: Low-profile design ideal for narrow drawer installations and tight cabinet spacing.
Hold-in at centre position: Keeps drawer securely closed when not in use, preventing drift or accidental opening.
Includes fixing hardware: Supplied with essential components for quick and easy setup on-site or during manufacturing.
Steel with Zinc Plating: Corrosion-resistant for reliable performance in transport and industrial environments.
Shock and vibration tested: Engineered to withstand harsh conditions in transport, mining, and service vehicles.
RoHS compliant: Meets global environmental and safety standards for regulated industries.
