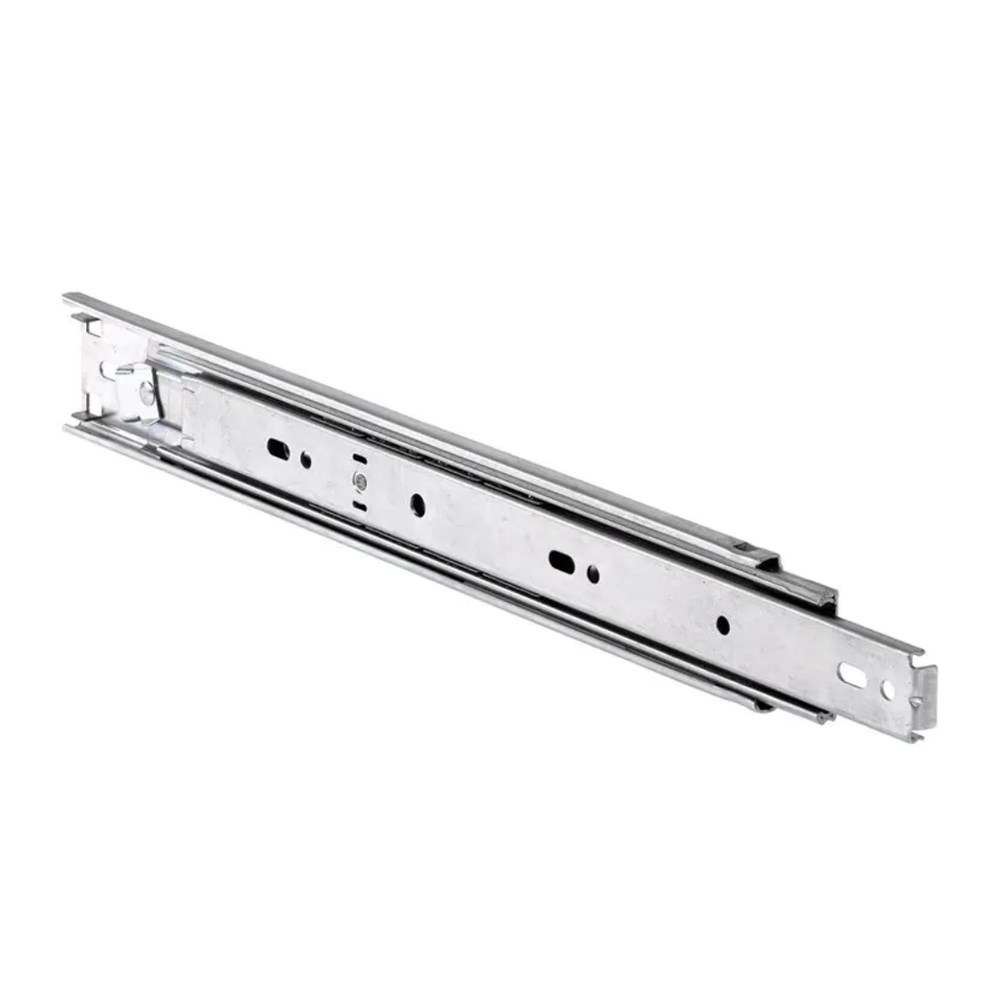

Name: Accuride Electrical Encl. 100%+ Extension 16cm PR ZP 55kg Load
Price: 313.12 NZD

Qty	Each (inc GST)	Each

Built-in mounting tabs
Load rating: up to 35 kg per pair
75 % extension

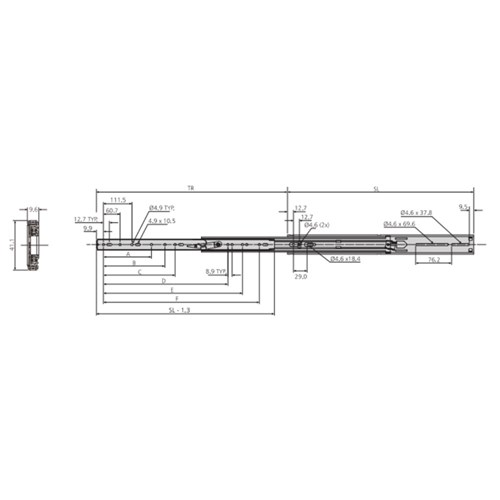

Slide height: 35.3 mm
Slide thickness: 9.5 mm
Side space for installation between the cabinet and the drawer: rail thickness 9.5 mm +0.2 mm to +0.5 mm
Maximum slide length: 711 mm
Two-way-travel slide
Temperature -20 °C to 70 °C
Permitted mounting orientations: vertical mount
Not suitable for flat mounting

Load rating up to 55kg: Supports medium-duty server and IT hardware with reliable performance in 19" rack installations.
100% extension: Allows full access to electronic components for easy maintenance and installation.
9.6mm slide thickness: Slim profile maximises usable rack space in dense IT and networking environments.
Front disconnect feature: Enables quick slide removal for efficient servicing or equipment swaps.
Vertical mount: Engineered for upright installations, ensuring reliable operation in electronic cabinetry.
Over travel design: Extends beyond full length for improved access to rear-mounted components in deep enclosures.
Optimised for 19" rack systems: Designed for IT, computing, and server environments where precise fit and durability are essential.
Shock and vibration tested: Engineered to withstand harsh conditions in transport, mining, and service vehicles.
RoHS compliant: Meets global environmental and safety standards for regulated industries.
